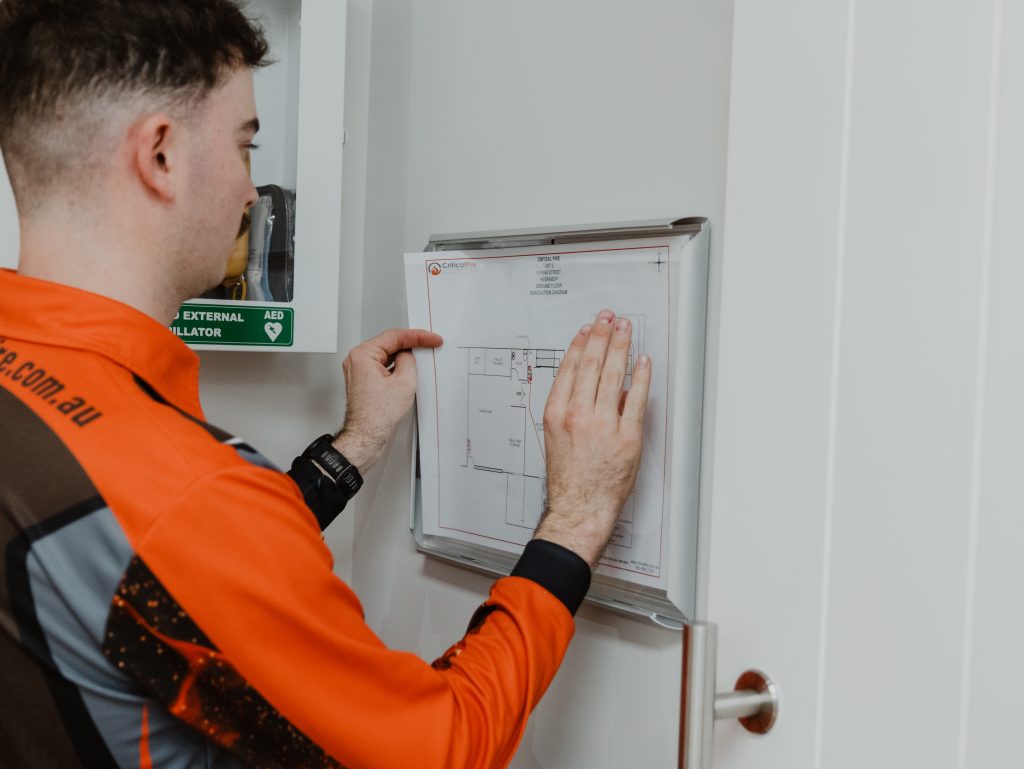

Evacuation Diagrams

Our Evacuation Diagrams are a stylish yet informative way of complying with Occupational Safety and Health requirements. Our diagrams are fully compliant with the requirements of AS 3745 and Occupational Safety and Health Regulations.

The plans include:

  • Diagram of the building layout
  • Diagram of the assembly area location
  • Locations of all fire and emergency equipment
  • Locations of all exits and paths of egress
  • A3, Full Colour and Laminated

Additional options for the plans include:

  • Company logos
  • Colour coding to match corporate branding
  • Framing or block mounting

To obtain a sample plan, a quote or to obtain more information please contact us.
